Installation of PL7 Pro on 64-bit based systems

Files needed

PL7 Pro installation media – Too big for online scan – Download

setup32.exe – Virus scan resultDownload – Virus scan resultDownload – Please do not use an older driver as they tend to mess things up


PL7 Pro SP5 – Too big for online scan – Download

Enabledlinkedconnections.reg – Virus scan result – Download – Download – Useful if you have an ethernet enabled PLC


Unfortunately Schneider Electric has decided not to support PL7 on 64-bit systems, it can also be difficult to get PL7 to work on later versions of windows.
Their official response is ‘Upgrade to Unity, convert your program’ but this is really not an option on a running system that just need a minor update or maintenance.

This guide will show you how to install PL7 Pro natively in Windows 10 x64 – this is done without the use of virtual machines.

It has been tested to work with the TSXCUSB485 USB cable and the TSXPCX1031 RS232 cable.
The RS232 cable is easier to work with as it does not require an additional driver like the USB cable does.

if your laptop does not have a RS232 port as pretty much all newer models do, you’ve probably tried a USB to serial converter, 9 out of 10 times this does not work.
Through trial and error I’ve found that the StarTech ICUSB2321F works flawlessly, so give it a try if you have serial programming cables lying around.

With the latest XIP driver from Schneider, it is also possible to program via the XIP driver

Please follow the steps carefully, it is quite difficult to recover from a botched driver installation, as it is almost impossible to uninstall the wrong driver version, and previous version won’t install if a later version is present on the system.

Step 1 – Preparing to install PL7 Pro

Copy the contents of the CD-ROM to a directory on your harddrive, for example C:\PL7 Installation
I recommend NOT putting it in C:\PL7 as this is the default installation dir for PL7.

Next, unzip and place setup32.exe into the installation dir
It should look something like this:

If you run setup.exe like you’re supposed to, you’ll get this error:

This has usually been the showstopper for installing PL7 Pro on any 64-bit based system.

However if you run setup32.exe the installation will start up correctly:

Follow the installation like you normally would by pressing next:

I select english and press Next > >

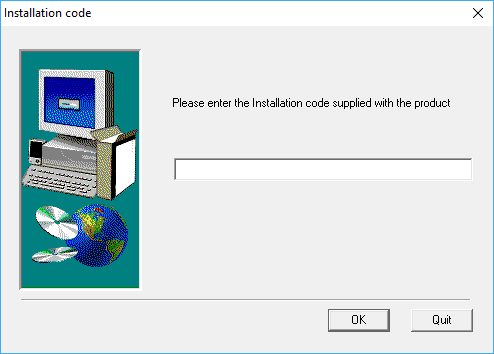

Insert your installation code, it is usually located on a sticker placed on the jewel case of your installation CD, and press OK.
I cannot give you a code, you must obtain one from Schneider Electric.

Type in your name and company, you must type something in both fields, otherwise Next > > will be greyed out.
Press Next > when you’ve filled out both fields.

I select ‘Standard installation’ and press Next >

For the sake of simplicity I recommend that you install it into the default directory – Just press Next >

This is a summary, if you are ready to install press Next >
The installation will now run, first it will install PL7, then it will attempt to install the Unitelway Driver.

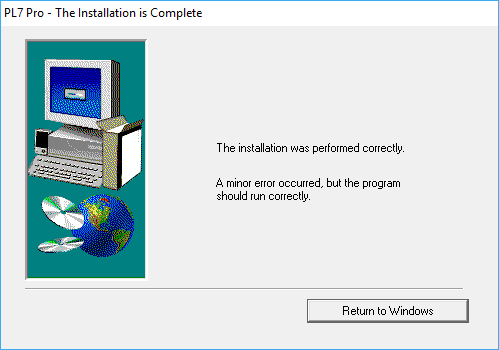

The installation will complain that ‘A minor error occured’ this is normal, don’t worry about it, now click ‘Return to Windows’

The installation will create a folder called  ‘Modicon Telemecanique’ if you look in the start menu of windows. It will contain a non-working drivers manager – we’ll fix this later.

It failed at creating the shortcut for PL7 and we will have to create that manually

Open up your file explorer and go to C:\PL7\PL7PRO45\EXE\

Find pl7pro.exe and rightclick it, go to ‘Send to’ and select ‘Desktop (create shortcut)

This will create a shortcut to PL7 Pro on your desktop:

In order to run PL7 properly you must run it as administrator, failure to do so will result in a licens alias file error.
You do not have to run PL7 at this time, if you install service pack 5 it will automatically request administrator access, and you won’t have to set it up manually.

This concludes step 1, and the PL7 Pro application itself should now be running natively in 64-bit windows.

Step 2 – Installation of Service Pack 5

This step is very similar to step 1.
If you’re logged into with your credentials the direct link for Service Pack 5 is
If you’re not logged in you’ll get an error message stating “Access denied. You’re not logged.”
Don’t worry if you do not have access to, you can download it from my page here
Unzip to a directory on your PC; I used C:\PL7V45SP5 which  is the default directory in the zip file.
Copy the same setup32.exe you used for the PL7 installation to your Service Pack 5 directory.

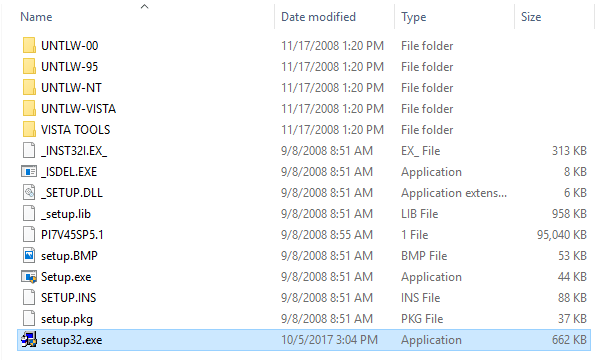

It should look something like this:

Now run setup32.exe, the installation should now start correctly:

Select Next > >

Once again, select language, I choose english, when you’re done click Next > >
Installation should now begin.

This page will pop up during the installation process, I choose “Install”, but you can probably get away with choosing “Don’t Install”, I haven’t tested it this way though.

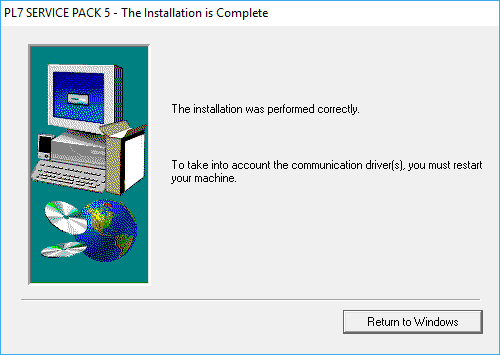

Installation complete – click Return to Windows.
It is not necessary to reboot, this won’t make the drivers manager work regardless.

This concludes the service pack 5 installation.

Step 3 – Getting the drivers manager to work

Download the Unitelway Drivers Suite from this page: Download

It contains a directory with the release notes and the installation file, I just unzipped it on my desktop.
Run the extracted file SchneiderUnitelwayDriverSuite.exe it will request adminstrator privileges, answer yes.

When the installation starts it will ask you to upgrade the drivers manager, answer yes here.

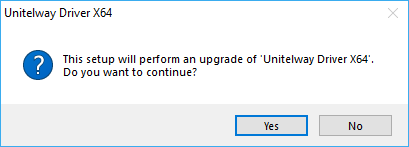

Later it will ask you to upgrade ‘Unitelway Driver X64’, answer yes here.

Give it some time, and when no more installation windows are active in the windows taskbar, the new drivers manager should be installed.
If you can’t find it try looking in the windows control panel.

The icon and text looks like this in Windows 10

Double click the drivers manager to activate it, if all things work as they should it should open like this:

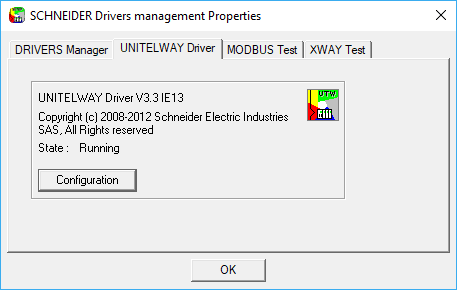

Selecting the ‘UNITELWAY Driver’ tab should open a page like this:

Selecting ‘Configuration’ will cause CnfUTW3.exe to request administrator privileges, selecting yes should open this page:

Highlighting the (Default) Station identifier and selecting ‘Edit…’ should open this page:

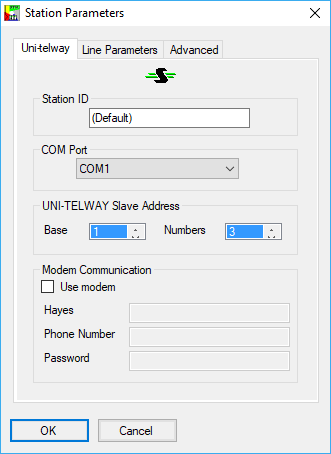

If you are using a RS232 cable select the right COM port, you need to know what your port is called as there is no indication what port the cable is installed on.

If the USB cable driver is installed correctly and the cable is attached you should see (ready) after the COM port it is installed on in the drop down list.

If the USB cable is NOT showing up correctly you may need an update Unitelway driver as it also contains the windows driver for the USB cable (Check for updates if it suddenly stops working, I will also try to post new drivers on the front of this blog).

You can check the windows device manager to see if the USB driver is installed properly, if you have a yellow exclamation mark next to it you probably need a driver update.

This concludes the drivers manager installation, you should now have a working PL7 Pro installation with SP5 installed and the ability to connect to a PLC and program it via the USB or Serial cable.

Step 4 – Enabling the ability to open .stx files directly from network shares

If you are having trouble opening .stx files directly on a network drive then you may need this small fix.
This is not really a PL7 issue but more of a windows quirk.

Unzip the file Enablelinkedconnections.reg somewhere, I would choose my windows desktop
Run Enablelinkedconnections.reg

Just select ‘Run’ here

Windows will then ask you this:

Select yes here to merge the file with the registry database.
If you feel unsafe opening a .reg file you can simply open the .reg file with notepad and add the settings manually, it’s just 1 setting:


Reboot your PC and it should work.

This concludes step 4

Step 5 – Installation of the XIP driver

The XIP driver is used to transfer program via ethernet to premium PLCs with an ethernet port onboard (For example TSX P573623A)
This method is MUCH FASTER than via the serial cable.
This step is OPTIONAL if you do not intend to program via an ethernet cable, you can skip this part.
However, a valid ethernet configuration must already be on the PLC, meaning you cannot program an empty card with this method, for that you must still use the serial cable.
Personally, I have a small program with just a hardware configuration that contains just an ethernet setup and nothing else.
I download this to the PLC via the serial cable, and when the download is complete and the ethernet module is initialized, I download the large program via the ethernet cable.

Download the XIP driver suite from here: Download
Extract the contents, it should contain a directory called ‘XIP driver’ with the release notes and the executable for installation.

Run ‘SchneiderXipDriverSuite.exe’

Follow the installation and when it is completed start ‘Driver manager’ again

Select the ‘XIP driver’ tab:

Click ‘Configuration’:

This screen should reflect the hardware setup in your PLC.

To check theese things open your PL7 program in PL7 Pro:

Double click the hardware configuration in the application browser:

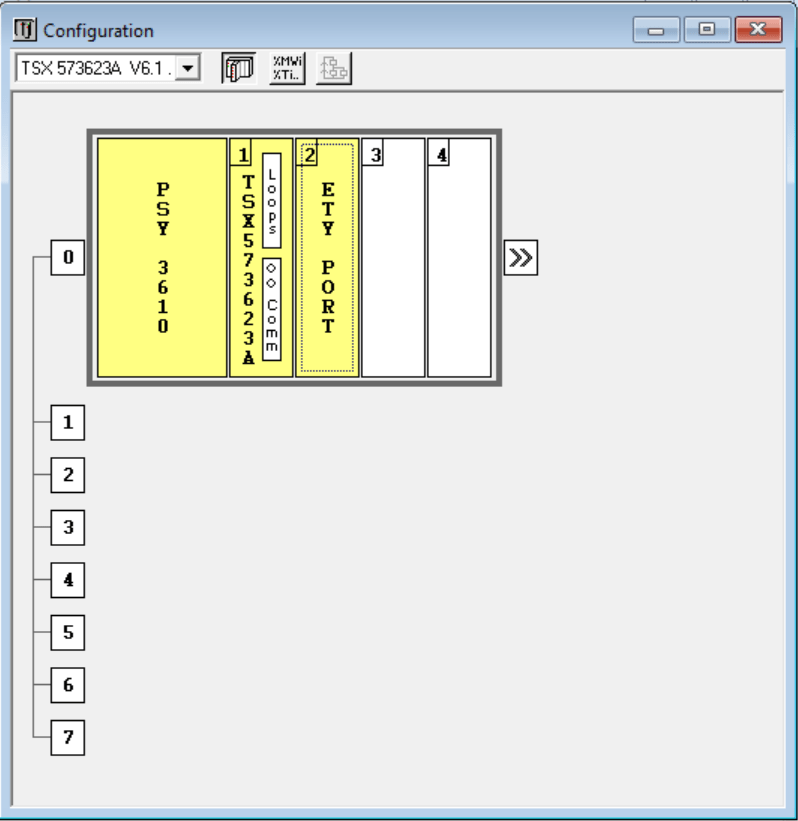

Double click the ‘ETY PORT’ slot:

The info you need is the ‘XWAY address’ and the ‘IP address’

Go back to your XIP configuration:

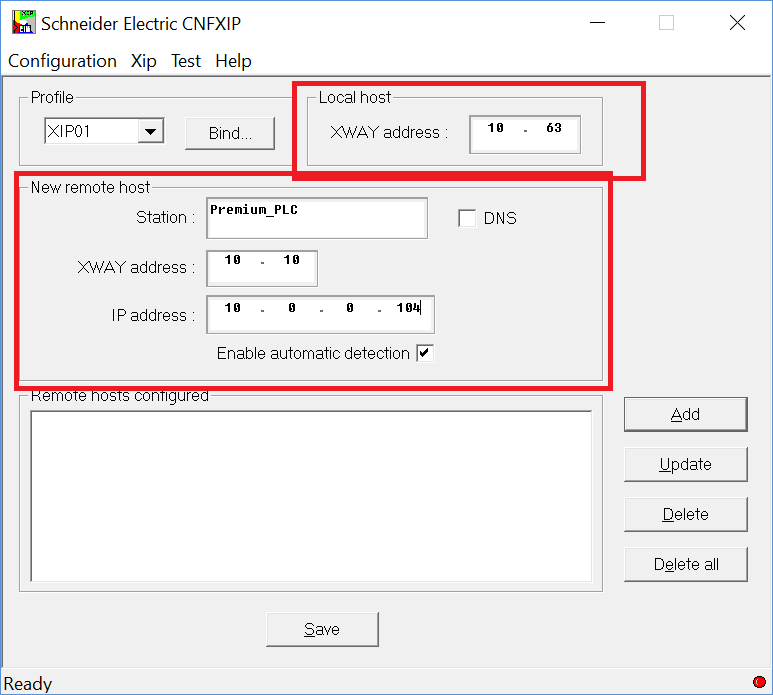

Local host:
XWAY address: must be NETWORK.UnusedStationID.
In this example where the PLC is on network 10 we must therefore start with 10 and since nothing is using station 63 this is a valid station number for the PC.

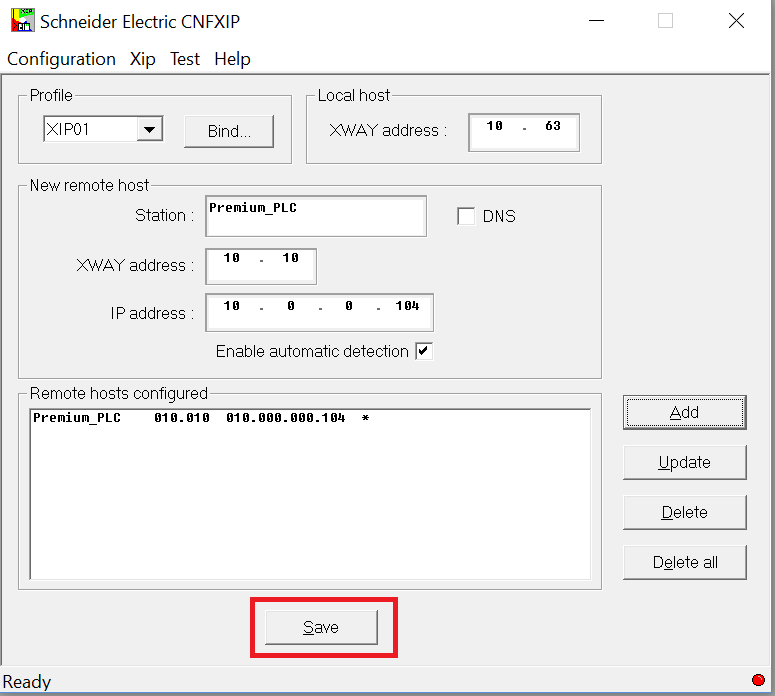

New Remote host:

Station: Can be whatever you want, I just call it Premium_PLC
XWAY address: Is what you noted in your hardware configuration, in this example 10.10
IP Address is the IP you noted for the PLC, in this example

Click the ‘Add’ Button:

When you press ‘Add’ it shows up under ‘Remote hosts configured’

Now go to Bind…:

Select your ethernet adapter by clicking the drop down button:

If your adapter is missing you can use the small up/down arrows on the right to find it.
You can also use the arrow keys on your keyboard.
REMEMBER: The chosen ethernet adapter MUST have a unique IP on the SAME SUBNET as the PLC
Meaning, for this example you could set a static IP on the specified ethernet adapter called and subnet
Click OK, when the adapter selection window closes press save:

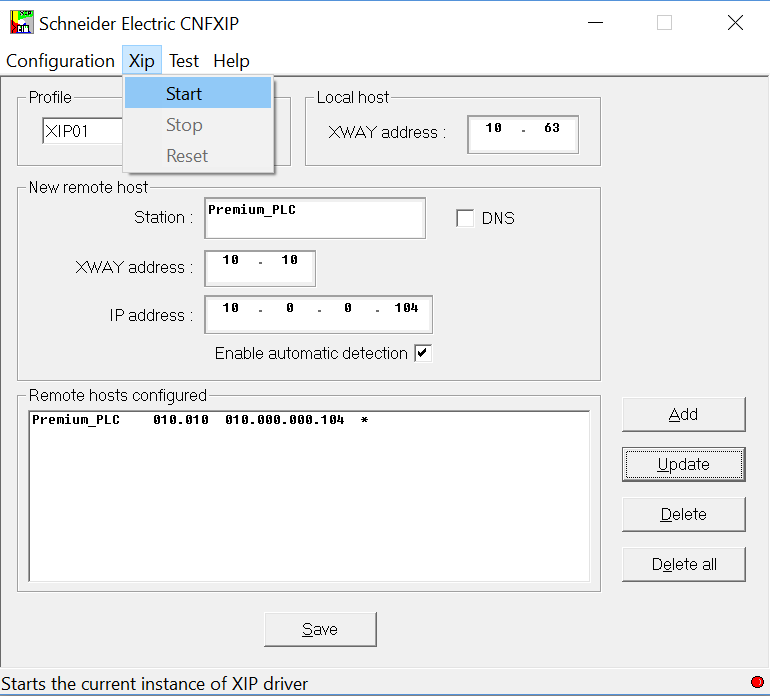

Now go to XIP and press start:

Red light in bottom right corner of the window should turn green:

Close the XIP configuration window, either by using the X in the top right corner of the window, or by going to Configuration > Exit
If it asks you to save configuration again, just press ‘Yes’

As you can see Driver 1 state is now ‘Running’

Close the driver manager and go to PL7, Select PLC -> Define PLC Address…

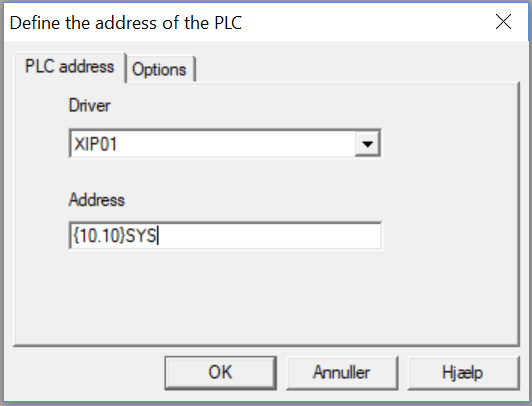

This will open a new window – This is how it looks if you wish to use the Unitelway driver(Serial cable/TSXCUSB485 cable)

This is how it looks if you wish to use the XIP driver(Ethernet cable):

If your PLC is *not* running with network and station ID 10 you must change the numbers in between { and } accordingly

Press OK and hit connect, if you have setup everything correctly it should respond as usual.

If you are experiencing problems try double clicking on the XIP driver icon in your systray:

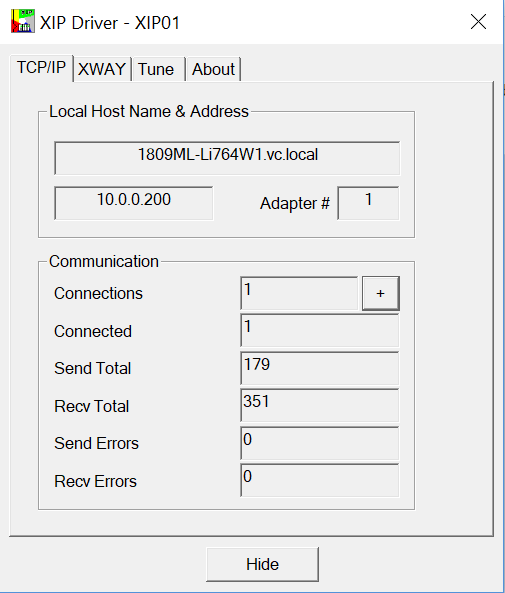

It should show something like this:

As you can see there is 1 connection, this is good, this means that the PLC is detected.
If you click the plus(+)-sign next to the amount of connections you can get a more detailed view:

This means that the XIP profile we configured and called ‘Premium_PLC’ is responding and is connected, and all is fine.

If you’re unable to connect and unable to see the configured PLC in this window, you might have a problem with your network setup or your PLC configuration.

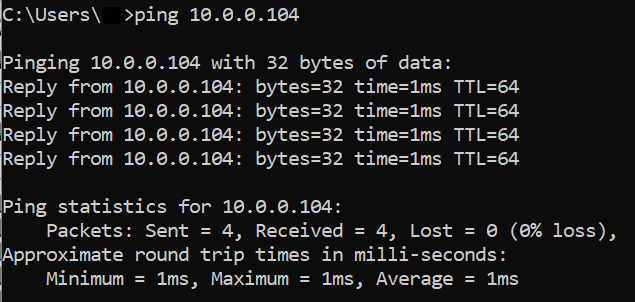

You can also ping a configured PLC:

If it does not respond you should check the ethernet settings of the used NIC, it should have a static IP set in the same subnet as the PLC with a UNIQUE IP

If it does respond and are still unable to connect, check the network and station ID,

This concludes the XIP driver installation.


I hope this guide was helpful to you, you should now have a working PL7 Pro installation on your 64-bit version of windows.
If you feel something is unclear, or if you simply have some tips or better methods let me know, and I’ll update the guide.
You can contact me at [email protected]

19 thoughts on “Installation of PL7 Pro on 64-bit based systems

  1. javier

    I cannot establish communication with the plc. You are currently using another driver combination with updated Windows 10??

  2. Greg Henry

    Hi, this worked fine, but the help files wont open, I get an error in french i think it is, I think there is a patch as I had this once before .

  3. Peter Piispanen

    Hi !
    The setupe32.exe is not working for me. Just leaves running in background (the blue installation Window is not poping up)
    Windows 10
    Any ideas what to doo?

  4. Lucas

    The install start for me only then i kill the task “nvcontainer.exe”.
    To check that hint: taskmanager->details->setup32.exe->Analyze the queue
    Kill the prozes “nvcontainer.exe” and after that the setup stat for me.

  5. Leif

    Hello Morten, and thanks for a great guide. I have PL7 running on win10, but I cant get the XIP drivers to show up when i try to “define the PLC adress” in PL7 dropdown. I have installed the XWAY TCP/IP Driver 3.13 IE23. The XIP driver seemingly works, since i can ping the PLC etc. It just doesnt show up in the dropdown in PL7 when trying to “define the PLC adress”.

    I run Control Expert EcoStruxure V15 on the same computer which may cause trouble?

    1. Morten Post author

      Hello Leif

      Sorry for not getting back to you sooner, I completely forgot about the notification.
      I am running the exact same version of the XIP driver as you.
      I also have Unity Pro L 13.1 installed, this is basically an older version of Control Expert EcoStruxure.
      The setup still works here, even with Unity Pro installed.
      Perhaps EcuStruxure made some changes to the driver manager somewhere?
      My driver manager is ‘Win64 XWAY Driver Manager V4, 18, 28, 0’
      If it is the same, I would try to uninstall the XIP driver via the drivers manager and then reinstall it, if you have not already done so

      Oh one more thing, are you running SP5 of PL7 Pro?

      1. Morten Post author

        I tried installing a more recent XIP driver, and the option disappeared from PL7.
        I then uninstalled the newer XIP driver from the drivers manager and rebooted.
        After that I tried to install again, and it was present in PL7 again.

  6. Nico

    Thanks for the guide! This has gotten me further than any other method, though I am still running into an error.

    After entering the Installation Code, I immediately receive an error.

    “Fatal Error!

    You do not have the rights to install this PL7 version.
    To get these rights install before the required PL7 program.”

    It’s unclear to me if this error is due to the installation code being not valid (we’ve used it in the past installing natively on Windows XP, so it should be valid) or if the issue is that I need to install another version first?

    I jave also made sure PL7 setup32.exe is being run with full administrator privileges so the issue is not there.

    Any help would be great, thanks so much

    1. Morten Post author

      Hello Nico

      I think your installation code may be from an earlier version.
      It seems the installations code for PL7 4.5 is pretty universal:
      At least the installation code that I was supplied with directly from Schneider is the same as the link.
      You can perhaps compare and see if you have an older version?
      If you do, you can use the installation code from the link, it will create a trial version for 30 days.

      1. Nico

        Hey Morten,

        I appreciate your response.
        This was very enlightening. Funnily enough the key I have is the same as the on in the link as well for 4.5.
        So it appears the issue isn’t with the Installation Code apparently.

    1. Morten Post author


      I’ve just tested it myself, and it seems Google Chrome blocks it as a potentially harmful file.
      I have to right click and click save link as, and then indicate that I want to keep the file when it has been downloaded.

      Edge also blocks it for being unsafe, but I don’t have to right click, I just have to state that I wish to keep the file once it has downloaded.

      Could it be theese issues you are experiencing?

  7. Kris Bergren

    Initially I had a problem connecting to my PLCs over serial/Unitelway Driver. Every machine in this plant with a TSX Premium uses a TSXPCX1031 RS232 cable. The rotary switch on all of these machines was set at position 0 – TER Multi, which worked fine when making a serial connection with a legacy computer, but failed to connect when using a modern PC w/ USB to serial adapter. I discovered that changing the rotary switch to position 2 – TER Direct fixes this problem. Originally, I didn’t want to mess with the rotary switch, because the old PCs were able to connect with the switch at position 0. Hopefully this helps someone.

    I really appreciate the effort put into this by Morten. It allows me to support a bunch of non-unity, Premium controlled machines with a modern PC. Thanks!
